Before attempting any repairs or testing, check out the gas safety and electrical safety pages.

Understanding the electrical system in a manual refrigerator is relatively simple as long as you know electricity must complete a circuit for something to work. A circuit is a loop beginning at a power source, normally passing through a wire, then through some sort of resistance (a heat element, for example), and eventually returning to the power source along a different path than it originated. Switches and thermostats in the circuit control the designated resistance by breaking the circuit and turning it off. With a 12 volt circuit, the metal chassis of the refrigerator can be the return "wire", or negative (-) side.

Note:

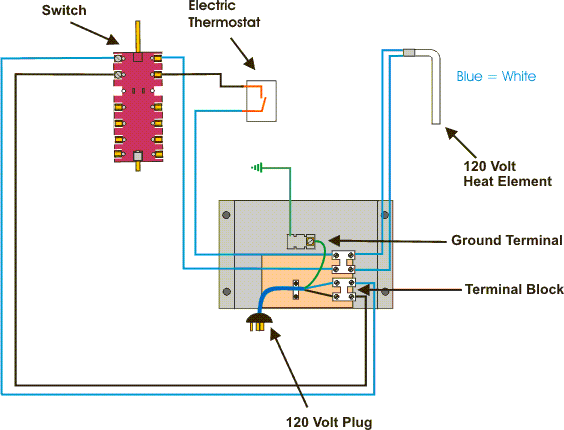

In the graphic, the switch and electric thermostat are shown for clarity. The switch really lies in front of the gas valve and can't be seen from the rear. The switch is accessed by removing the gas controls in front of it. The electric thermostat is located inside the refrigerator.

Electric Operation
The switch (operated by the selector knob at the front of the refrigerator) is the heart of the electrical system on a manual refrigerator. Both 120 volt and 12 volt (optional) are wired to the switch. The switch keeps the two voltages apart while applying the selected voltage to the thermostat and the appropriate heat element. When gas is selected, the electric circuit is open.

Inside the electric thermostat are a set of points that open and close, depending on the temperature of the refrigerator. When the points are closed, electricity flows through to the heat element, causing it to heat the cooling unit. A capillary tube (not shown) running from the thermostat to the fins inside the refrigerator senses the temperature inside and activates the thermostat. The points open and close depending on the temperature of the refrigerator.

Troubleshooting
Diagnosing an electrical problem usually involves testing for the presence of voltage at various points along the circuit. Naturally, you will need some sort of test apparatus to conduct the tests. A test bulb, of the right voltage, with wires will work, or, preferably, a volt meter. First, be sure you have power to the refrigerator. Is there power at the 120 volt receptacle? The most common electrical problem is the heat element not getting hot. A burned out heat element is a good possibility in such a case, so testing the connections to the heat element for voltage would be the next step. If you have voltage to the heat element and it doesn't get hot, it is bad. If there's no voltage to the heat element, then work backwards toward the thermostat and switch.

A thermostat problem is usually a case where the thermostat is either stuck shut or stuck open. Testing the connections on the thermostat while in operation will give you the answer you need. However, consider the temperature inside the box before jumping to any conclusions. Should the contacts inside the thermostat be open or closed at the given temperature? Having someone rotate the thermostat knob from one extreme to the other can also be helpful. If the thermostat fails to either open or close at the appropriate time, it needs to be replaced.
