Dave's Place - 1973-75 Dodge Class A M500/RM400 (Hydro-Vac) Motorhome Brakes

M500 (RM400) 1973-75 (Hydro-Vac)

(RM400 redesignated to M500 in 1975 documentation)

Master Cyl:

Bendix Tandem (Dual)

Booster:

Dual Bendix Hydro-Vac
Combination Metering Valve / Brake Warning Switch

Front:

Kelsey Hayes Sliding Caliper Disc (Dual Piston) 13.36"

Rear (73-74 RM400; VIN R5):

Bendix Twinplex 15" x 4"

Rear (74-75 M500); VIN M5:

Bendix Duo-Servo 15" x 4"

Note:
The Dodge MH Service manuals indicate that 73-74 RM400 used Bendix Twinplex rear brakes and 74 later model M500 used Bendix Duo-Servo rear brakes however, none of the Dodge MH Parts manuals show parts for 74 later model M500 Bendix Duo-Servo 15" x 4" configuration.
Additionaly, aftermarket parts sites only show parts for the Bendix Twinplex 15" x 4" rear brakes.
Given that I can only locate information for the Bendix Twinplex 15" x 4" rear brake configuration I only list parts for that configuration.

PART	BENDIX	CENTRIC	WAGNER	CARDONE	NAPA	DORMAN	EBAY	RAYBESTOS
Master Cylinder 1973 Dodge: 3640282	Not Available	Not Available	MC80584 X-Ref 3640282	Not Available	Not Available	Not Available	EBAY	MC39013 X-Ref MC80584

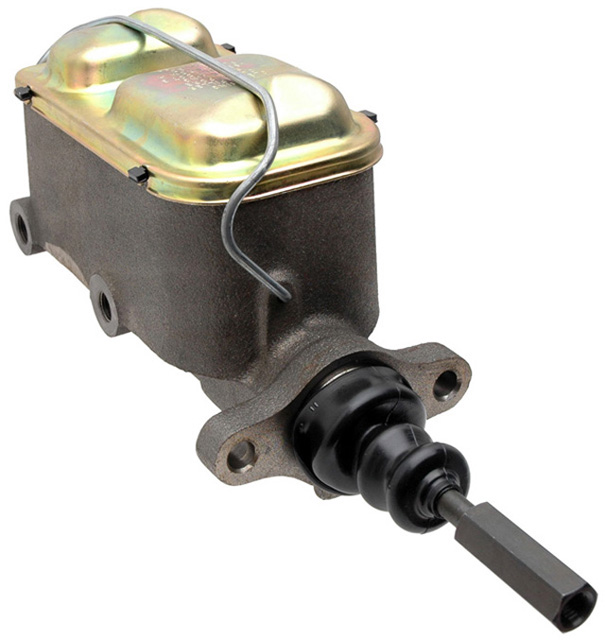

Master Cylinder 1974 - 1975 Bendix Tandem (Dual) Dodge: 3820823	Not Available	Not Available	MC80584 X-Ref 3820823	Not Available	Not Available	Not Available	EBAY	MC39013 X-Ref MC80584
PART	BENDIX	CENTRIC	WAGNER	CARDONE	NAPA	DORMAN	EBAY	RAYBESTOS

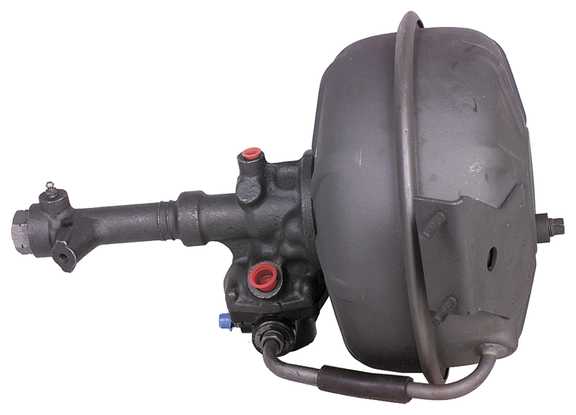

Booster Bendix Hydro-Vac 1973 (RM400; VIN R5): Dodge: 3640050 Bendix: 2503151	Not Available	Not Available	Not Available	CARDONE 51-8016 Precision Rebuilders 2503151	MBI RV2503151X OR NBB 518016	Not Available	EBAY	Not Available

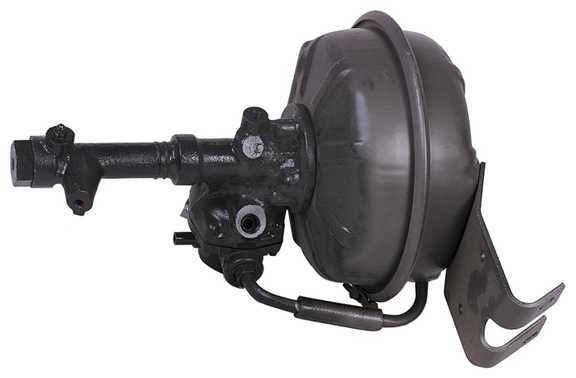

Booster Bendix Hydro-Vac 1974-75 (M500; VIN M5): Dodge: 4030334 Bendix: 2512063	Not Available	Not Available	Not Available	CARDONE 51-8055 Precision Rebuilders 2512063	MBI RV2512063X OR NBB 518055	Not Available	EBAY	Not Available
PART	BENDIX	CENTRIC	WAGNER	CARDONE	NAPA	DORMAN	EBAY	RAYBESTOS
Front Rotor Dodge: N/A	Bendix - Not Available KIC - 666-13380	120.67010 120.67010	Not Available	Not Available	Not Available	Not Available	EBAY	Not Available

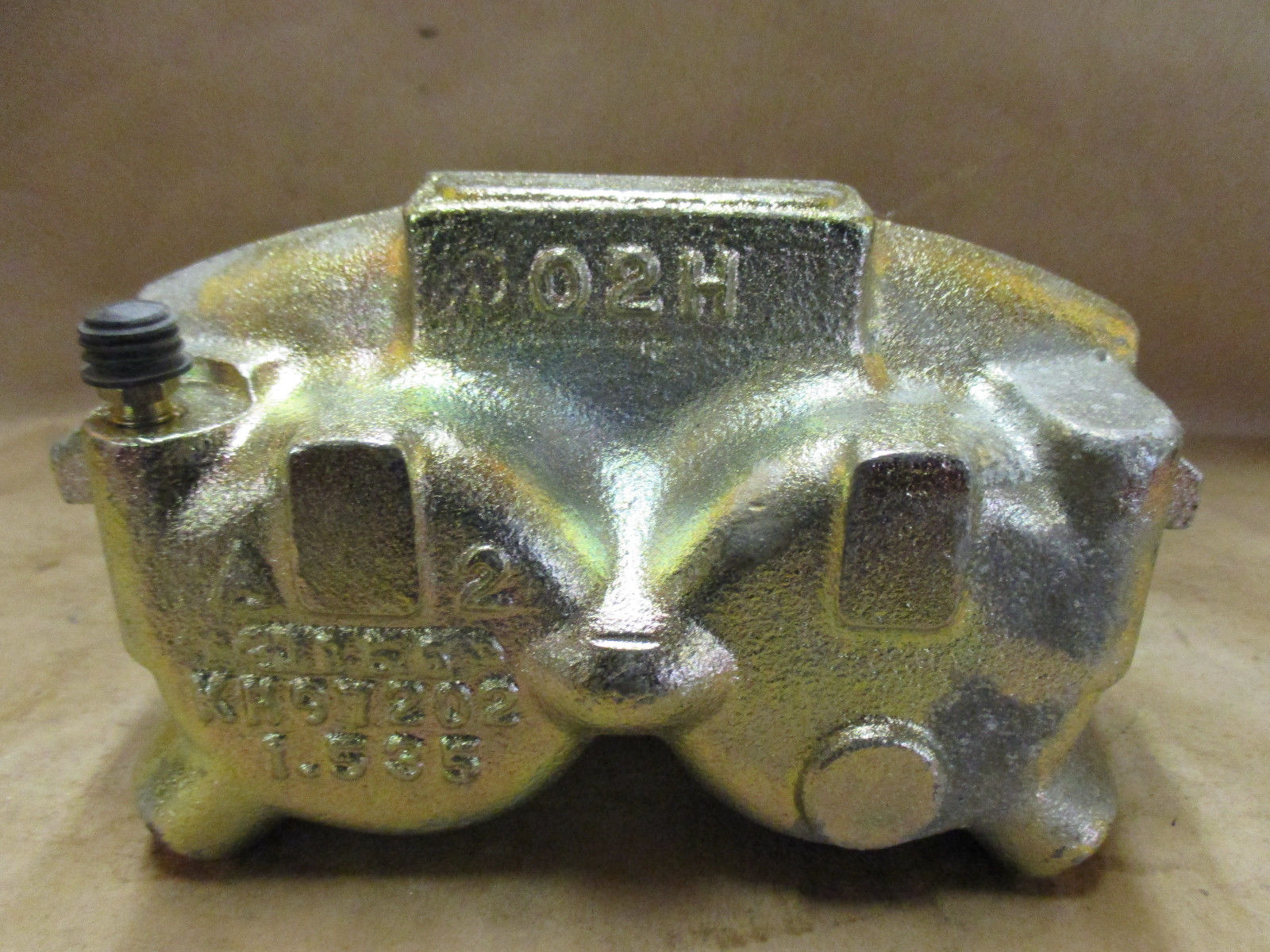

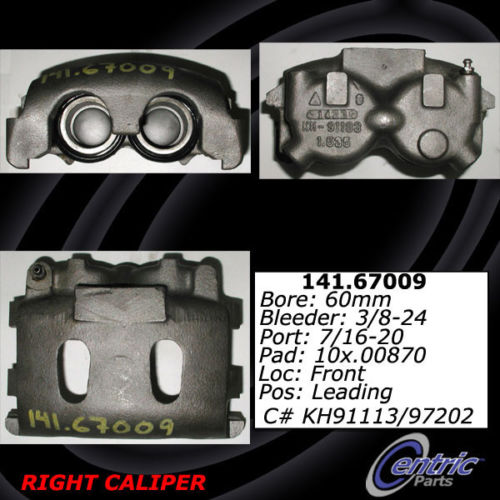

Front Caliper Dodge: 3732927 (LF) Dodge: 3732926 (RF)	LF E146-72-014 RF E146-72-015	LF: Reman: 141.67010 RF: Reman: 141.67009	Not Available	LF: Reman: 18-4272 RF: Reman: 18-4271	LF: CAL SE4823 RF: CAL SE4822	Not Available	EBAY	LF: FRC4041 RF: FRC4042

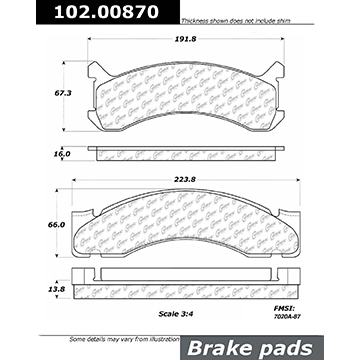

Front Brake Pads Dodge: 3744500	Not Available	102.00870	MX269 (ThermoQuiet) ZX269 (Quick Stop) SX269 (Severe Duty)	Not Available	TS7020M	Not Available	EBAY	SGD87M (Economy) PGD87M (Premium)

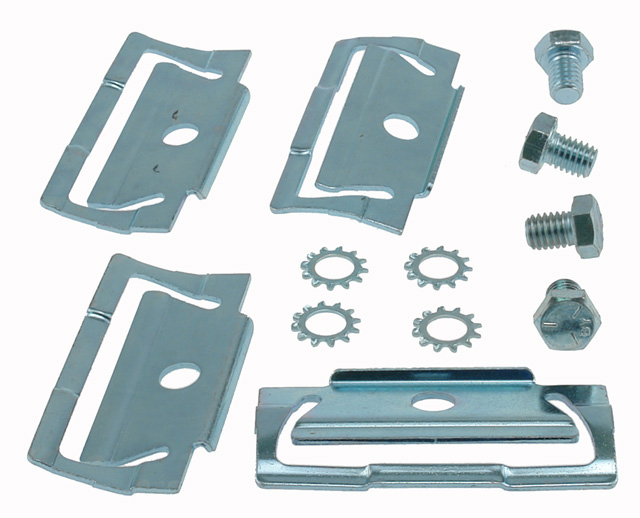

Front Brake Hardware Kit	1 Wheel E148-69-013	2 Wheel 117.67002	2 Wheels H56291	Not Available	2 Wheels 82695A	Not Available	EBAY	1 Wheel H5598 2 Wheels H5598A
1973 Front Brake Hose Dodge: 3640582	Not Available	Not Available	BH84512	Not Available	73521	H84512	EBAY	Not Available

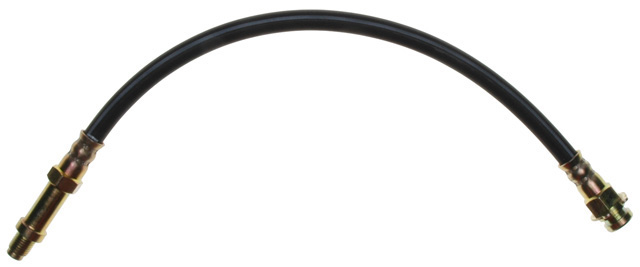

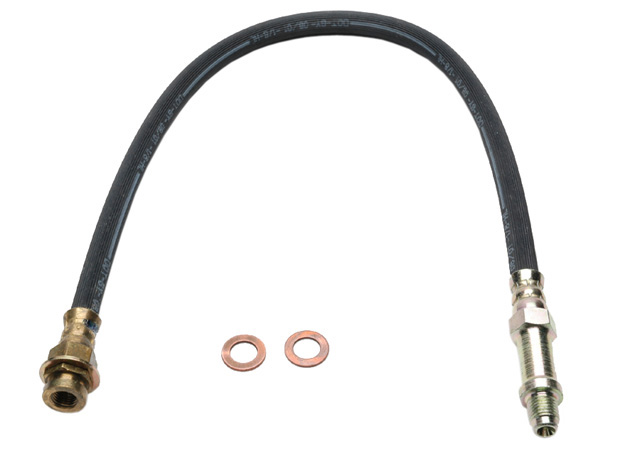

1974 - 1975 Front Brake Hose Dodge: 3894749 (15 inch) Dodge: 3894749 (21 inch)	15 inch New: E155-67-346 Old: 88222 21 inch New: E155-73-018 Old: 88468	Not Available 150.62341 is not correct substitute hose for BH26913 150.68013 is not correct substitute hose for BH102335	15 inch BH37583 21 inch BH102335	Not Available	15 inch 26913 21 inch 38519	18 inch H84512 21 inch H71339	EBAY	15 inch BH26913 21 inch BH38519
PART	BENDIX	CENTRIC	WAGNER	CARDONE	NAPA	DORMAN	EBAY	RAYBESTOS

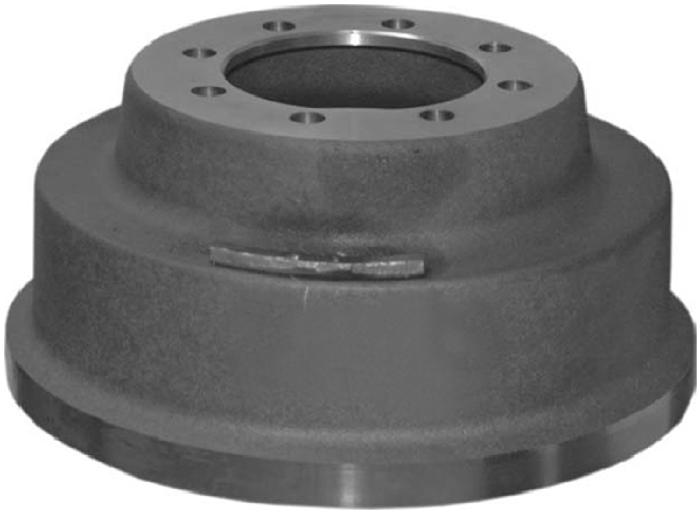

Rear Brake Drum 1973 - 1975 Dodge: 3821456	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available

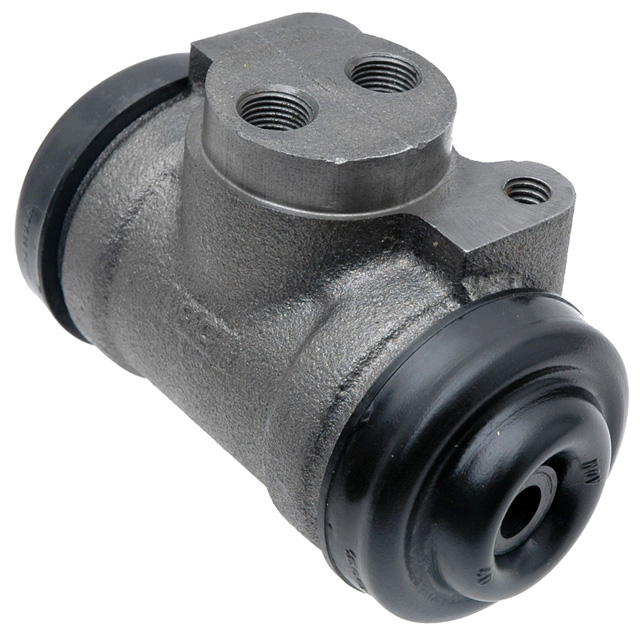

Rear Wheel Cylinder Bore Diameter: 1 3/8" Dodge: 3641892 (Upper) Dodge: 3641893 (Lower)	Not Available	Not Available 134.67011 has 7/16-24 theads vs M10-1	Upper & Lower WC113064	Not Available	Upper & Lower UP 37279 Confirmed for both top and bottom	Not Available	EBAY	Upper & Lower WC37279

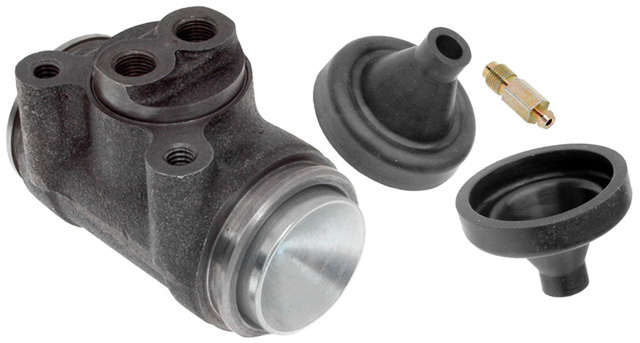

Rear Wheel Cylinder Bore Diameter: 1 1/2" Dodge: 2954347 (Upper) Dodge: 2954348 (Lower)	Not Available	Not Available	Upper & Lower WC28661	Not Available	Upper & Lower UP 28661	Not Available	EBAY	Upper & Lower WC28661

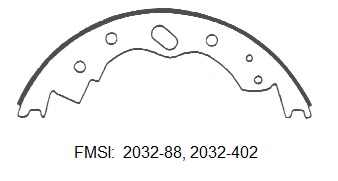

Rear Brake Shoe 15" x 4" Dodge: 4026636 FMSI: 2032-402	E116-0402-0	Not Available	Not Available	Not Available	NAPA GR2032402R	Not Available	EBAY Amazon	Premium: 402PG

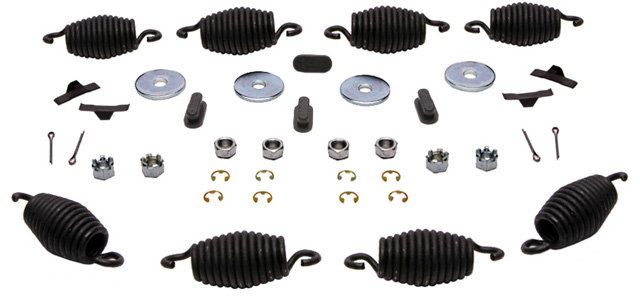

Rear Brake Hardware Kit Bendix Twinplex	Not Available	Not Available	2 Wheels H7189	Not Available	2 Wheels UP 2320	Not Available	EBAY	2 Wheels H9223

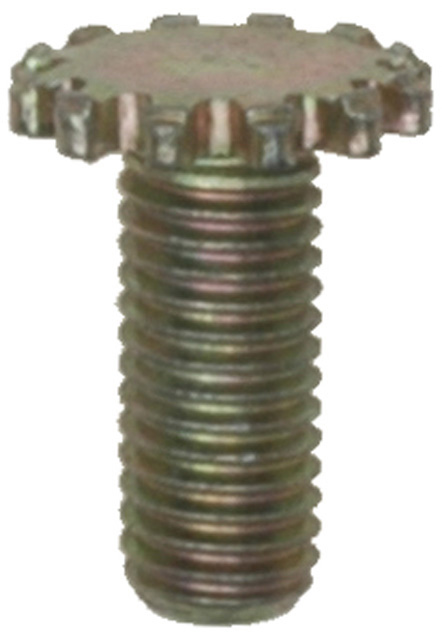

Rear Brake Adjustment Screw Bendix Twinplex Confirmed for both top and bottom	Not Available	Not Available	1 Wheel H1708	Not Available	1 Wheel UP 81107	Not Available	EBAY	1 Wheel H1826
PART	BENDIX	CENTRIC	WAGNER	CARDONE	NAPA	DORMAN	EBAY	RAYBESTOS
