Chevy P30 454 (7.4L) Fan Belts And Hoses

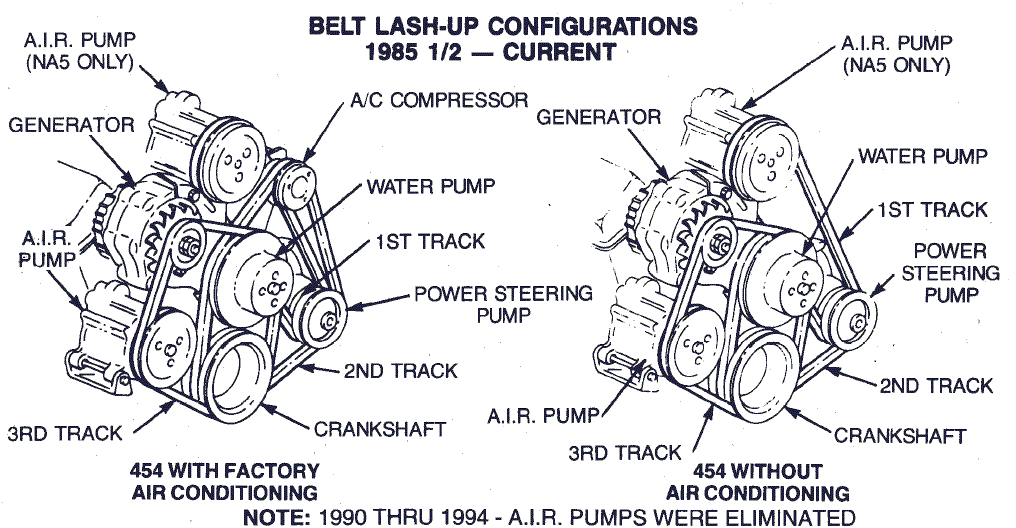

Fan Belts
| Crank, Water Pump, Alternator Belt | |||
| Year | Description | Part Number | Belt Tension |
| 1979 - 1985 | GM: 9433752 NAPA: 15495 or 257495 Autozone: 15495 (Duralast) |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
|
| 1990 | Serpentine 52.75 inches (1340 mm) |
GM: 10085787 NAPA: 6K525 or 25060525HD Autozone: 525K6 (Duralast) |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
| Crank, Water Pump, Alternator, Air Pump Belt | |||
| Year | Description | Part Number | Belt Tension |
| 1985 1/2 - 1989 | Poly V, 6 Rib 55.98 inches (1422.0 mm) |
GM: 14087540 NAPA: 6K560 or 25060560 or 25060560HD Autozone: 560K6 or 5060560 or 560K6 |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
| Crank to Power Steering Pump Belt | |||
| Year | Description | Part Number | Belt Tension |
| 1979 - 1985 | Without A/C | GM: 9433745 NAPA: 15460 or 257460 Autozone: 15460 (Duralast) |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
| 1985 1/2 - 1990 | Without A/C .47 inch x 45.5 inches |
GM: 10034695 NAPA: 15455 or 257455 Autozone: 15455 |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
| 1985 1/2 - 1990 | With A/C, Hi Ride 3/8 inch x 41 inches GM Code: XL |
GM: 9433735 NAPA: 15410 or 257410 Autozone: 15410 (Duralast) |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
| Crank, Power Steering Pump, A/C Compressor, Water Pump Belt | |||
| Year | Description | Part Number | Belt Tension |
| 1985 1/2 - 1990 | Hi Ride 3/8 inch x 60.5 inches GM Code: GA |
GM: 14033869 NAPA: 15603 or 257603 Autozone: 15603 (Duralast) |
Used: 90 +/- 5lbs New: 135 +/- 5lbs |
| Power Steering Pump to 2nd AIR Pump Belt (NA5 Code chassis only) | |||
| Year | Description | Part Number | Belt Tension |
| 1985 1/2 - 1990 | With and Without A/C All Federal Jobs, Hi Ride .47 inch x 45.00 inches GM Code: CNA |
GM: 10034695 NAPA: 15455 or 257455 Autozone: 15455 (Duralast) |
Used: 75 +/- 5lbs New: 125 +/- 5lbs |
Hoses
| Upper Radiator Hose | |||
| Year | Description | Part Number | |
| 1973 - 1981 | Vertical Radiator 350 Engine |
GM: 6259952 NAPA: 7575 Autozone: E70935 (Dayco) |
|
| 1973 - 1981 | Vertical Radiator 454 Engine |
GM: 6259953 NAPA: 7537 Autozone: B70846 (Dayco) |
|
| 1982 | Horizontal Radiator 454 Engine (Varies by Model & option) |
GM: 14049401 NAPA: 8153 Autozone: B70846 (Dayco) GM: 15599363 NAPA: 8232 Autozone: E71429 (Dayco) |
|
| 1983 | Horizontal Radiator 454 Engine |
GM: 15595586 NAPA: 7537 Autozone: B70846 (Dayco) |
|
| 1984 (H4D) | Horizontal Radiator 454 Engine |
GM: 14049401 NAPA: 8153 Autozone: B70846 (Dayco) |
|
| 1985 - 1989 (H5D) | Horizontal Radiator 454 Engine |
GM: 15599363 NAPA: 8232 Autozone: E71429 (Dayco) |
|
| 1990 - 1994 (H5D) | Horizontal Radiator 454 Engine |
GM: 15638164 NAPA: 8153 Autozone: B70846 (Dayco) |
|
| Lower Radiator Hose | |||
| Year | Description | Part Number | |
| 1973 - 1981 | Vertical Radiator 350 & 454 Engine |
GM: 343414 NAPA: 7581 Autozone: E70735 (Dayco) |
|
| 1982 | Horizontal Radiator 350 Engine |
GM: 343414 NAPA: 7581 Autozone: E70735 (Dayco) |
|
| 1982 - 1984 | Horizontal Radiator 454 Engine |
GM: 14049500 NAPA: 8154 Autozone: E71430 (Dayco) |
|
| 1985 - 1994 | Horizontal Radiator 454 Engine (Varies by Model & option) |
GM: 14049500 NAPA: 8154 Autozone: E71430 (Dayco) GM: 15595587 NAPA: 7537 Autozone: B70846 (Dayco) GM: 14042372 NAPA: 7537 Autozone: B70846 (Dayco) |
|
