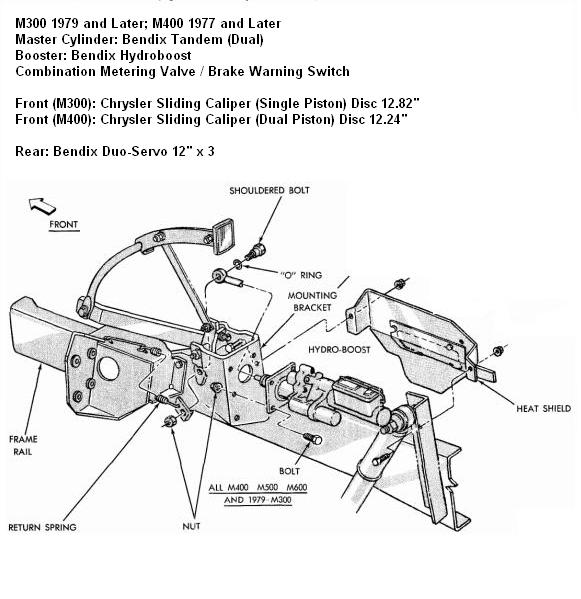

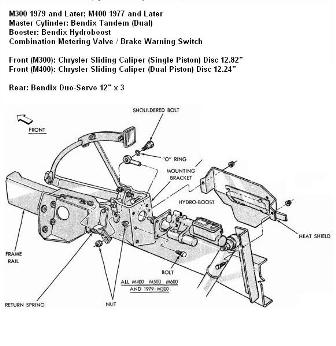

M500 1976 and Later (Hydroboost)

Master Cylinder:
Bendix Tandem (Dual)

Booster:
Bendix Hydroboost
Combination Metering Valve / Brake Warning Switch

Front:
Kelsey Hayes Sliding Caliper Disc (Dual Piston) 13.36"

Rear:
Bendix Duo-Servo 15" x 4"


Note:
The Dodge MH Service manuals indicate that 73-74 RM400 used Bendix Twinplex rear brakes and 74 later model M500 used Bendix Duo-Servo rear brakes however, none of the Dodge MH Parts manuals show parts for 74 later model M500 Bendix Duo-Servo 15" x 4" configuration.
Additionaly, aftermarket parts sites only show parts for the Bendix Twinplex 15" x 4" rear brakes.
Given that I can only locate information for the Bendix Twinplex 15" x 4" rear brake configuration I only list parts for that configuration.
PART BENDIX CENTRIC WAGNER CARDONE NAPA DORMAN EBAY RAYBESTOS
Master Cylinder
Bendix Tandem (Dual)
Dodge: 4031345
 Not Available Not Available Not Available New: 13-1583
Reman: 10-1583 		New: NMC M2134
Reman: NMC P2134 		M39012 EBAY Not Available
Booster
Bendix Hydroboost
Dodge: 4031352
 Not Available Not Available Not Available Reman: 52-9393 NBB 529393 Not Available EBAY Not Available
PART BENDIX CENTRIC WAGNER CARDONE NAPA DORMAN EBAY RAYBESTOS
Front Rotor
Dodge: N/A
 Bendix - Not Available
KIC - 666-13380 		120.67010

120.67010 		Not Available Not Available Not Available Not Available EBAY Not Available
Front Caliper
Dodge: 3732927 (LF)

Dodge: 3732926 (RF)
 LF
E146-72-014

RF
E146-72-015 		LF:
Reman: 141.67010

RF:
Reman: 141.67009 		Not Available LF:
Reman: 18-4272

RF:
Reman: 18-4271 		LF: CAL SE4823

RF: CAL SE4822 		Not Available EBAY LF: FRC4041

RF: FRC4042
Front Brake Pads
Dodge: 3744500
 Not Available 102.00870 MX269
(ThermoQuiet)

ZX269
(Quick Stop)

SX269
(Severe Duty) 		Not Available TS7020M Not Available EBAY SGD87M
(Economy)

PGD87M
(Premium)
Front Brake Hardware Kit
 1 Wheel
E148-69-013 		2 Wheel
117.67002 		2 Wheels
H56291 		Not Available 2 Wheels
82695A 		Not Available EBAY 1 Wheel
H5598

2 Wheels
H5598A
Front Brake Hose
Dodge: 3894749 (15 inch)


Dodge: 3894749 (21 inch)
 15 inch
New: E155-67-346
Old: 88222

21 inch
New: E155-73-018
Old: 88468 		Not Available
150.62341 is not
correct substitute
hose for BH26913

150.68013 is not
correct substitute
hose for BH102335 		15 inch
BH37583

21 inch
BH102335 		Not Available 15 inch
26913

21 inch
38519
 18 inch
H84512

21 inch
H71339 		EBAY 15 inch
BH26913

21 inch
BH38519
PART BENDIX CENTRIC WAGNER CARDONE NAPA DORMAN EBAY RAYBESTOS
Rear Brake Drum
Dodge: 3821456
 Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available
Rear Wheel Cylinder
Bore Diameter: 1 3/8"
Dodge: 3641892 (Upper)
Dodge: 3641893 (Lower)

 Not Available Not Available
134.67011 has 7/16-24 theads vs M10-1 		Upper & Lower
WC113064 		Not Available Upper & Lower
UP 37279

Confirmed for both top and bottom 		Not Available EBAY Upper & Lower
WC37279
Rear Wheel Cylinder
Bore Diameter: 1 1/2"
Dodge: 2954347 (Upper)
Dodge: 2954348 (Lower)


 Not Available Not Available Upper & Lower
WC28661 		Not Available Upper & Lower
UP 28661 		Not Available EBAY Upper & Lower
WC28661
Rear Brake Shoe
15" x 4"
Dodge: 4026636
FMSI: 2032-402
 E116-0402-0 Not Available Not Available Not Available NAPA
GR2032402R 		Not Available EBAY

Amazon 		Premium: 402PG
Rear Brake
Hardware Kit
 1 Wheel
E123-73-008 		2 Wheel
117.67003 		2 Wheels
H7042 		Not Available 2 Wheels
UP 2243 		Not Available EBAY 2 Wheels
H7042
Rear Brake
Adjustment Screw
Bendix Twinplex

Confirmed for both top and bottom 		Not Available Not Available 1 Wheel
H1708 		Not Available 1 Wheel
UP 81107 		Not Available EBAY 1 Wheel
H1826
PART BENDIX CENTRIC WAGNER CARDONE NAPA DORMAN EBAY RAYBESTOS
